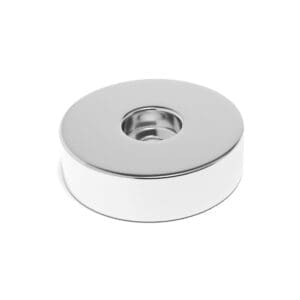

Counterbore Neodymium Magnets

Counterbore Neodymium Magnets, with their distinctive recessed hole design, are engineered for secure, flush mounting. The recess accommodates screws, enabling a seamless integration with surfaces, making them indispensable for precision tasks. Ideal for use in sophisticated woodworking, custom cabinetry, and discreet, reliable fixture mounting in both domestic and commercial settings. Their robust magnetic force also makes them perfect for creating adaptable, high-strength fastenings in retail displays and modular setups. Explore the seamless blend of strength and subtlety with Counterbore Neodymium Magnets.

Width/ Diameter





Pull Force (KG)

Max Operating Temperature

Filter by stock status

Counterbore Magnets FAQs

What are counterbore magnets typically used for?

Counterbore magnets are commonly used in applications where the magnet needs to be securely attached to another surface, such as in fixtures, mounts, displays, or as part of a mechanical coupling system. The counterbore allows for the head of a screw or bolt to be recessed, ensuring a flush finish and a strong, stable attachment.

How do you correctly install a counterbore magnet?

To install a counterbore magnet, you will need a screw or bolt that fits the counterbore size. Place the magnet in the desired location, align the hole with the pre-drilled hole in the attaching surface, and insert the screw or bolt. Tighten until the head of the screw is flush with the magnet surface, being careful not to over-tighten and damage the magnet.

Can counterbore magnets be stacked for increased strength?

Counterbore magnets can indeed be stacked to enhance their collective magnetic force. For instance, by stacking two magnets each with a 10mm thickness, you can achieve approximately 80% of the pull force you would get from a single 20mm thick magnet. This incremental increase in pull force continues as you add more magnets, up until the point where the total thickness of the stack surpasses the diameter of the magnets.

Can counterbore magnets be custom sized to fit specific screws or bolts?

Absolutely, we can custom manufacture counterbore magnets to meet specific dimensions and to fit particular screws or bolts as per client specifications.

How do you remove a counterbore magnet once installed?

To remove a counterbore magnet that’s been installed, first remove the bolt or screw that’s holding it in place. If the magnet is fixed to a metal surface and proving difficult to detach, try attaching a large stack of magnets to the one you want to remove, then apply steady pressure at an angle to pry them all away from the surface together. This will provide enough leverage to remove the magnets with much less force. When using this method, it’s important to wear safety gloves and follow appropriate precautions for safe handling.

What is the lead time for custom counterbore magnet orders?

For custom counterbore magnet orders, our turnaround time is exceptionally fast. We typically expect to complete orders within 15 business days.

What is the best countersink bolt or screw to use with counterbore magnets?

To properly fit counterbore magnets, choose a bolt or screw slightly smaller than the counterbore’s diameter – these measurements are shown on our product pages. For screws, Phillips head cap screws or socket head cap screws are ideal choices due to their flat tops that allow for a flush finish with the magnet surface. While we recommend stainless steel fasteners for their corrosion resistance and strength, you may select the material based on your specific environment.
