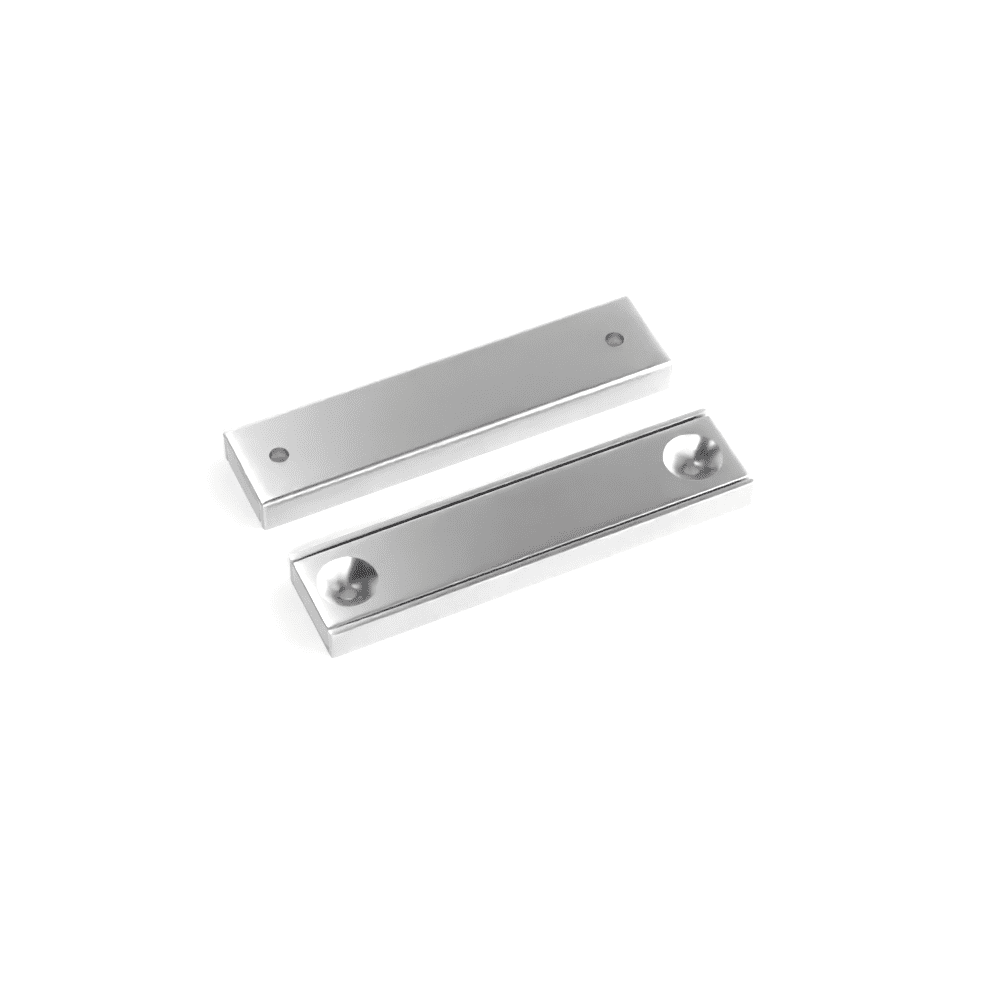

50mm x 13.5mm x 5mm (Two 3.3mm c/s holes) Neodymium Mounting Magnet N35 (27KG Pull)

£9.49£2,754.99

These high-powered 50mm x 13.5mm x 5mm (Two 3.3mm c/s holes) Neodymium Mounting Magnets N35 (27KG Pull) are perfect for mounting on a wall or surface. The steel channel protects the magnet from damage that may be caused by high-impacts, so improves the longevity substantially, as opposed to general block countersunk magnets.

Mounting or channel magnets are most commonly used for securing into a flat service and used as magnetic door latches or holding display items and signs into place.

These high-powered 50mm x 13.5mm x 5mm (Two 3.3mm c/s holes) Neodymium Mounting Magnets N35 (27KG Pull) are perfect for mounting on a wall or surface. The steel channel protects the magnet from damage that may be caused by high-impacts, so improves the longevity substantially, as opposed to general block countersunk magnets.

Mounting or channel magnets are most commonly used for securing into a flat service and used as magnetic door latches or holding display items and signs into place.



Quality Assurance

These Neodymium magnets are triple coated with Ni-Cu-Ni that maximise longevity and provide a smooth, clean finish that looks aesthetically pleasing. These high powered magnets have been engineered to the highest ISO standards and they are built to last, however, Neodymium is a naturally fragile metal and clashing two rare earth permanent magnets together risks cracking or damaging them.



Technical Specifications

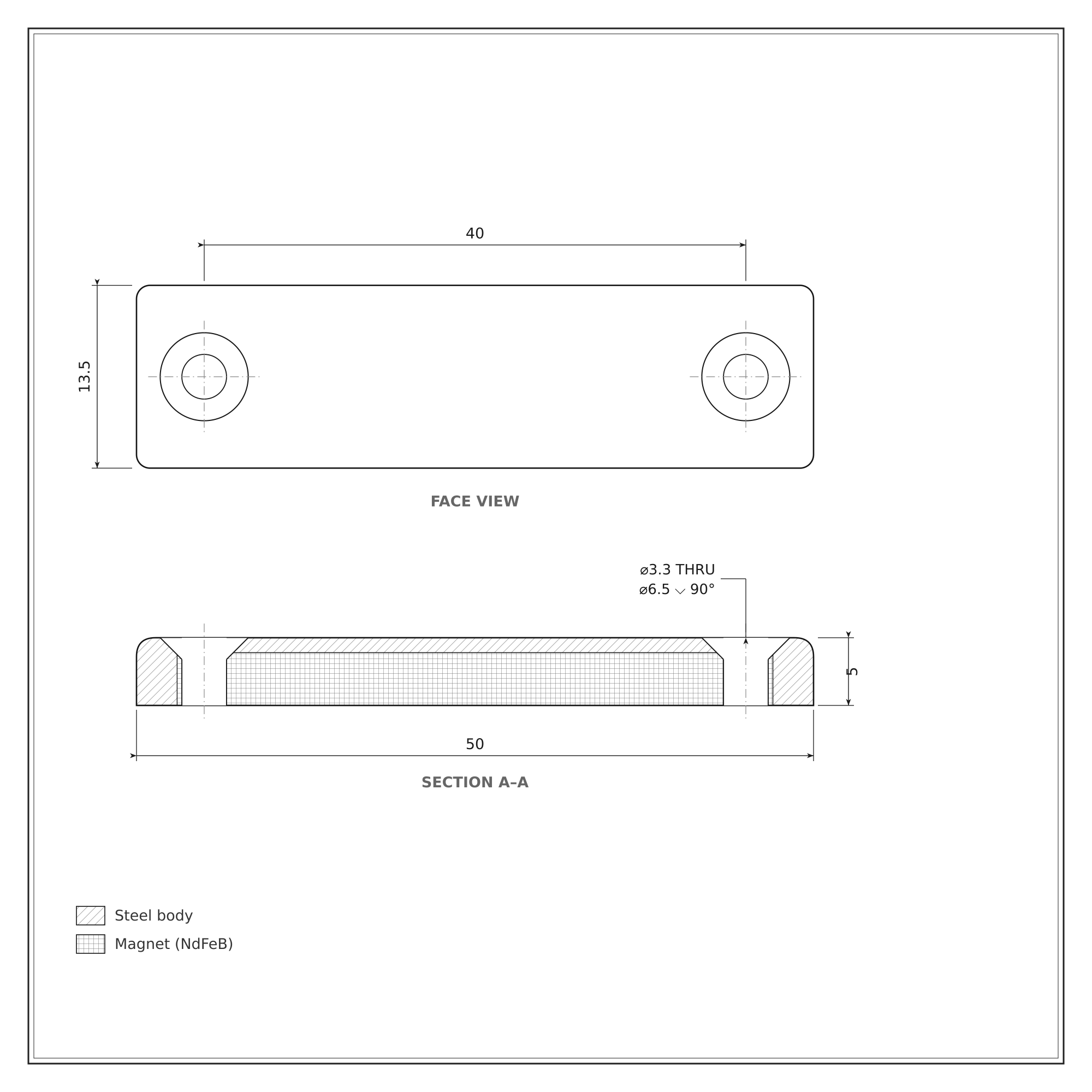

  • 50mm x 13.5mm x 5mm (Two 3.3mm c/s holes) Neodymium Mounting Magnet N35 (27KG Pull)
  • Neodymium (NdFeB) Grade: N35
  • +/-0.1mm tolerance.
  • 27KG maximum pull force
  • Triple coated (Ni-Cu-Ni)



Looking for a different shape or size? Click here to view our full range of countersunk magnets.



Additional information

Amount

, , , , , , ,

Shape

, , ,

Grade

N35

Material

Neodymium (NdFeB)

Plating

Ni-Cu-Ni

Max Temperature

80°C

Length

50mm

Width

13.5mm

Depth

5mm

Countersunk hole

3.3mm

Max Pull (KG)

17KG Pull
