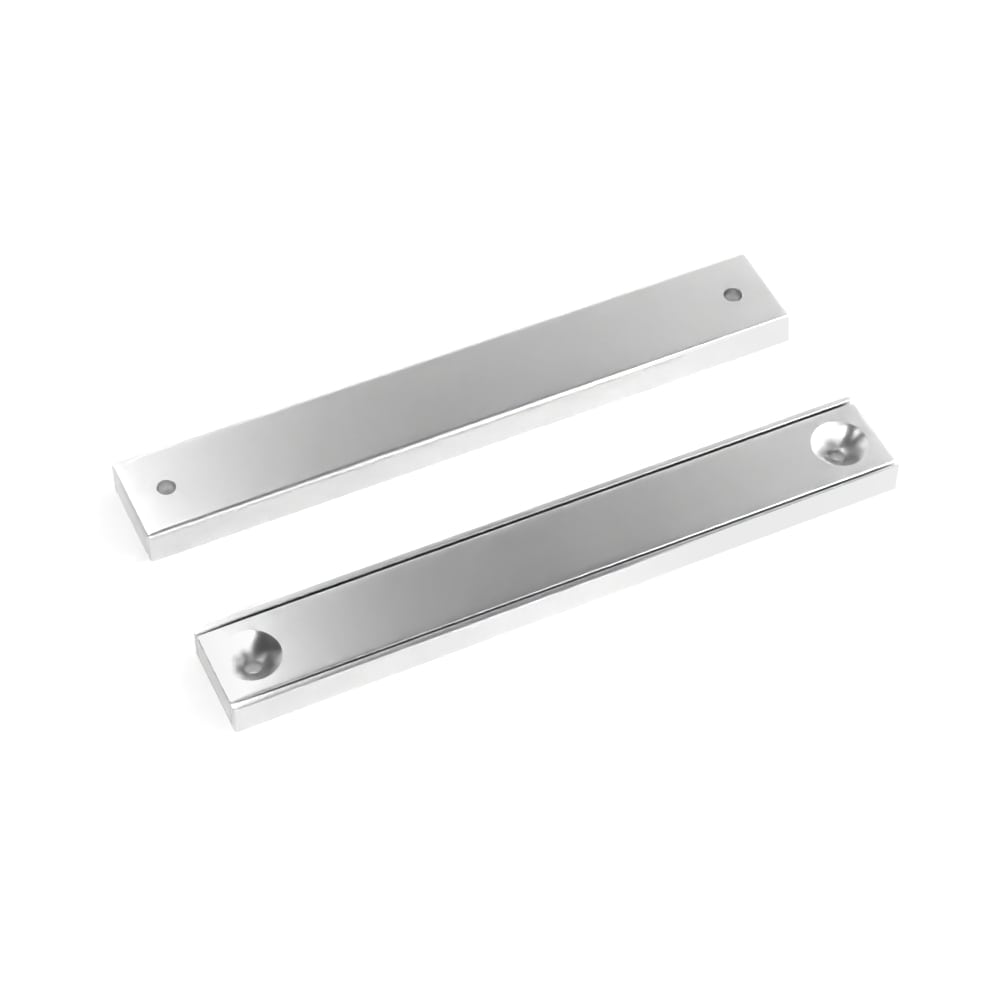

80mm x 13.5mm x 5mm (Two 3.3mm c/s holes) Neodymium Mounting Magnet N35 (33KG Pull)

£10.93£5,224.99

These high-powered 80mm x 13.5mm x 5mm (Two 3.3mm c/s holes) Neodymium Mounting Magnets N35 (33KG Pull) are perfect for mounting on a wall or surface. The steel channel protects the magnet from damage that may be caused by high-impacts, so improves the longevity substantially, as opposed to general block countersunk magnets.

Mounting or channel magnets are most commonly used for securing into a flat service and used as magnetic door latches or holding display items and signs into place.

These high-powered 80mm x 13.5mm x 5mm (Two 3.3mm c/s holes) Neodymium Mounting Magnets N35 (33KG Pull) are perfect for mounting on a wall or surface. The steel channel protects the magnet from damage that may be caused by high-impacts, so improves the longevity substantially, as opposed to general block countersunk magnets.

Mounting or channel magnets are most commonly used for securing into a flat service and used as magnetic door latches or holding display items and signs into place.



Quality Assurance

Introducing our premium N35-grade 80mm x 13.5mm x 5mm (Two 3.3mm c/s holes) Neodymium Mounting Magnets, meticulously crafted to meet your diverse needs with unparalleled performance. These magnets boast a triple-layer coating of nickel-copper-nickel (Ni-Cu-Ni), ensuring maximum protection against corrosion, enhancing longevity, and maintaining a pristine appearance.

Our neodymium mounting countersunk magnets are manufactured to comply with REACH and RoHS standards, meaning they are free from harmful substances and environmentally safe. The Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH) regulation governs the production and usage of chemicals, while the Restriction of Hazardous Substances (RoHS) directive restricts the use of specific hazardous materials in electrical and electronic equipment. By adhering to these standards, we guarantee the safety and quality of our products.

We pride ourselves on delivering top-quality products to our customers. We have implemented an extensive quality check programme to ensure that our neodymium magnets pass the highest quality standards. Each magnet undergoes rigorous tests and inspections, providing reliable, powerful magnets that stand the test of time.

Neodymium is a naturally fragile metal that lacks the elasticity commonly found in other metals. Due to their inherent brittleness, handling neodymium magnets with care is crucial. Clashing two neodymium magnets together may cause them to crack or sustain damage. Always exercise caution when using and storing these powerful magnets to ensure optimal performance and longevity. Trust in our premium magnets' quality, performance, and reliability, expertly crafted to meet the most stringent UK and international standards.

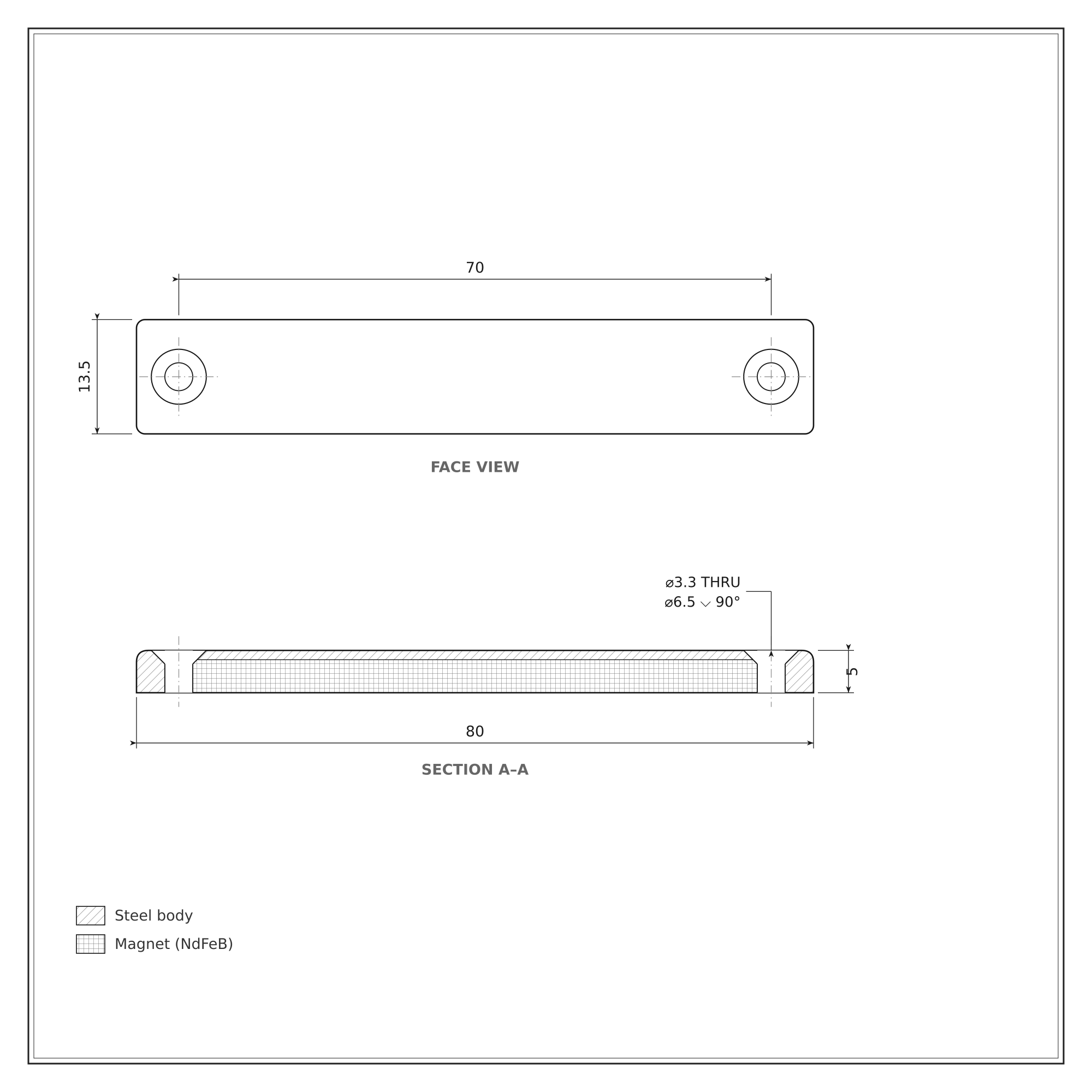

Technical Specifications

  • Length 80mm
  • Width 13.5mm
  • Thickness 5mm
  • (Two 3.3mm c/s holes)
  • Neodymium (NdFeB) Grade: N35
  • +/-0.1mm tolerance.
  • 33KG maximum pull force
  • Triple coated (Ni-Cu-Ni)



Looking for a different shape or size? Click here to view our full range of countersunk magnets.



Additional information

Weight N/A
Amount

, , , , , , , ,

Shape

, , ,

Grade

N35

Material

Neodymium (NdFeB)

Plating

Ni-Cu-Ni

Max Temperature

80°C

Length

80mm

Countersunk hole

3.3mm

Max Pull (KG)

33KG Pull

Width

13.5mm

Pull Force Range

20KG+

Max Surface Field (Gauss)

2495

Thickness

5mm
